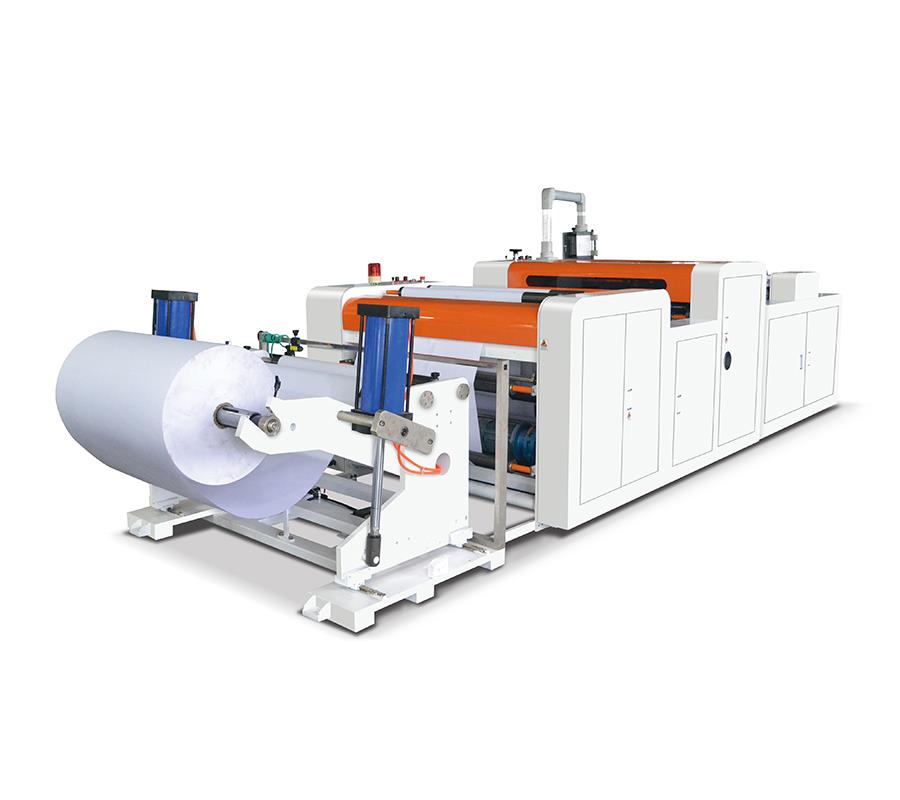

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc to different size
(A1,A2,A3,A4)
1-It adopts PLC touch screen control, servo motor for controlling constant-length cutting
2-It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.
3- This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder
4-tension control, can be cutted vertically, adopt blower to get rid of waste.
5-This machine can be with 1 roll.2roll.4roll loading systerm.
|
Model |
HQJ-800D |
HQJ-1100D |
HQJ-1300D |
|
Max. Width of cutting |
800mm |
1100mm |
1300mm |
|
Max. Diameter of material |
Φ1400mm |
Φ1400mm |
Φ1400mm |
|
Min. Width of cutting |
50mm |
50mm |
50mm |
|
Length of cutting |
20-1200mm |
20-1200mm |
20-1200mm |
|
Speed |
10-180times/min |
10-180times/min |
10-180times/min |
|
Precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Total Power |
5.5kw |
6.5kw |
7.5kw |
|
Weight (approx. ) |
2500kg |
2800kg |
3000kg |
|
Overall dimension (LxWxH) (mm) |
5000×1600×1300 |
5000×1950×1300 |
5000×2150×1300 |
