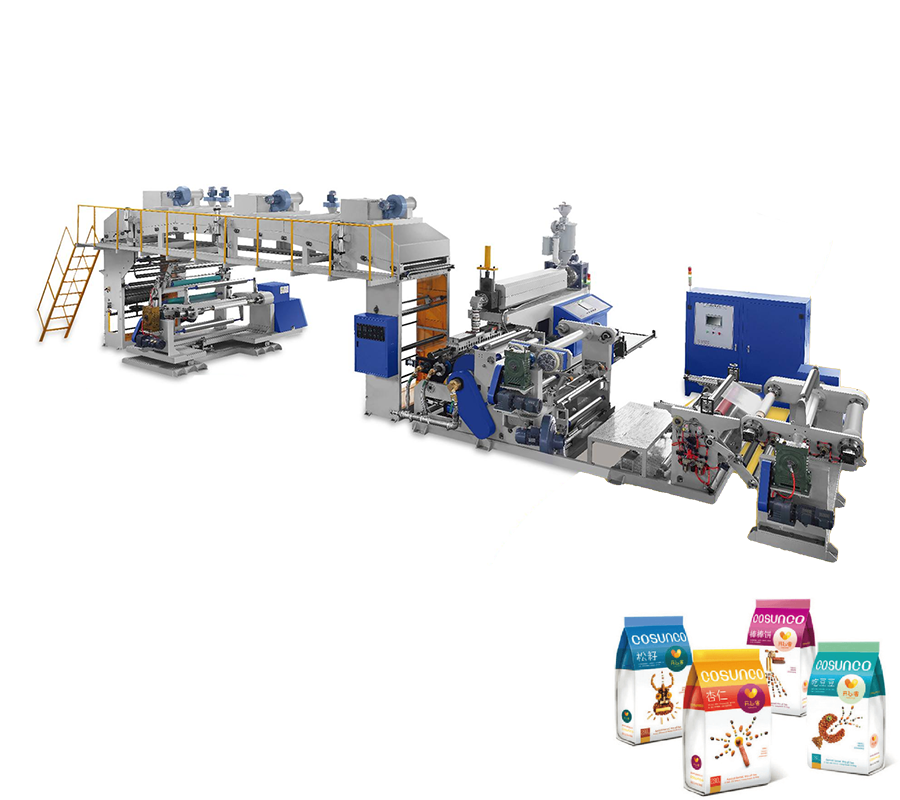

Co-Extrusion Laminating Machine for soft packaging

Category:Co-Extrusion Laminating Machine

Product features

Co-Extrusion Laminating Machine was designed for Film Base Lamination. No matter efficiency, preciseness and quality are all better than regular models. Product widely used in Safe food packaging business and medical business.
Base material can be: BOPP，PET, BOPET，CPP，CPE，and Aluminum Foil, can accept coating material of lamination grade resin of LDPE, PP, EVA, EAA etc…And can pre-coat glue on film surface before lamination.

Inquiry

Product Details

Film-Based Extrusion Laminating Machine

Product description




Machine brief description


Co-Extrusion laminating Machine was designed for Film Base Lamination. No matter efficiency, preciseness and quality are all better than regular models. Product widely used in Safe food packaging business and medical business.

Base material can be: BOPP，BOPET，CPP，CPE，and Aluminum Foil, can accept coating material of lamination grade resin of LDPE, PP, EVA, EAA etc…And can pre-coat glue on film surface before lamination.


Highlight


1.Machine can do stable running 150M/Min speed running without problem. Fully Automatic of Auto-Splicer, Tension Control and EPC, make sure high efficiency and reliable.

2.This model is double preciseness than paper base lamination machine, no matter tension, coating variation and trimming and etc., all require as less as possible.

3.This model has no certain model, almost every order machine is specially customized based on product and formulation. To make sure maximum effort of production.

4.We have full supply resources of each key parts of machine, including gears, glue coating machine, screws and T-Dies. In different brands and different applications. To make sure we can always supply the best to our clients according to their product.


Product Parameters


Screw

φ90 mm

L/D

33:1

Finished Film Width

600-1000mm

Coating Thickness

0.01-0.10 mm

Material

LDPE、LLDPE、PP、EVA、EAA

Design Line Speed

185 m/min

Max Extrusion

200kg/h

Main Motor Power

45 kw

Total Power

190kw

Main Unwinder Diameter

≤φ600 mm

2nd Unwinder Diameter

≤φ500 mm

Winder Diameter

≤φ800 mm

Weight

12t

Overall Dimension

9000×15000×3200 mm

Power Supply

380V/3P/4L/50Hz


Medical, Food, Electronic Packaging Products will always require high barrier packaging, sealing and even thickness.



Normally, such business will require using Aluminum Foil, PET film, BOPP film etc, compounding them together to accheive high barrier effect.

We continue our study of technoligy, formula and engineering skill of such business, to make sure our clients can always have better supports from us.



T-Die



Back Pressure Friction Winder



Double Station Turrent Un-Winder with Auto-Splicer



2nd Un-Winder



Chill Roller



Automatic EPC
