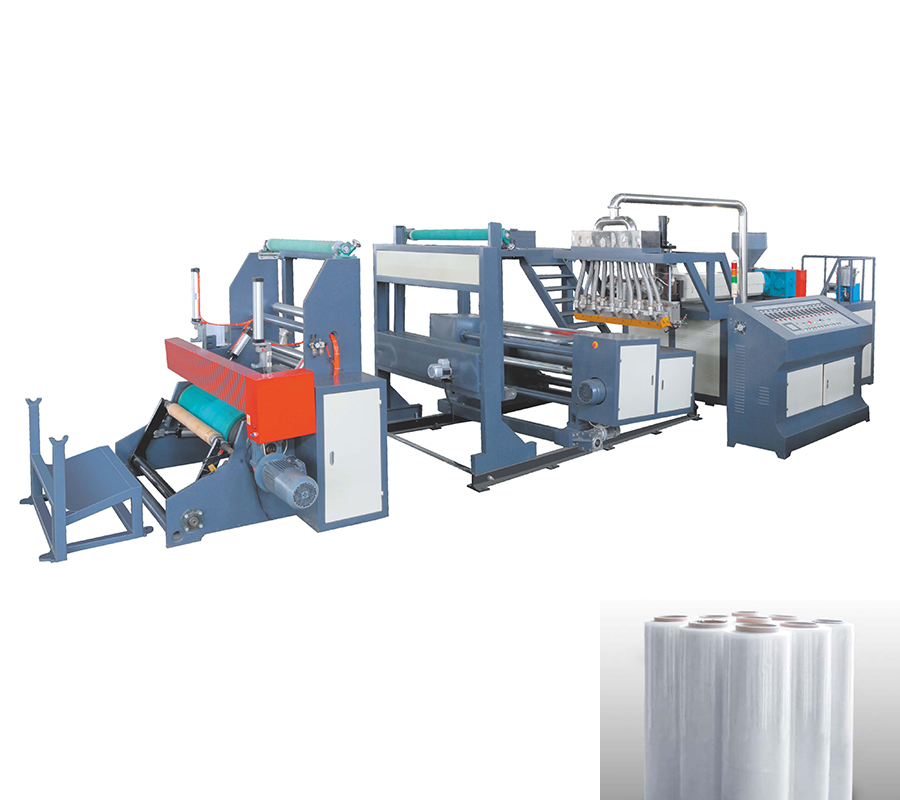

High Speed Stretch Film Making Machine

Category:High Speed Stretch Film Making Machine

Product features

Double Extruder Co-Extrusion, product can be single side sticky to save glue cost. Machine real stable working speed 150/Min. PLC Touch Screen Control, easy operation, high efficiency. Machine equipped with high speed edge online recycle system, entire process full automatic, save manufacturing cost and labor cost. Winder PLC control, reduce labor cost, high efficiency.

Product description


Highlight


Double Extruder Co-Extrusion, product can be single side sticky to save glue cost. Machine real stable working speed 150/Min. PLC Touch Screen Control, easy operation, high efficiency. Machine equipped with high speed edge online recycle system, entire process full automatic, save manufacturing cost and labor cost. Winder PLC control, reduce labor cost, high efficiency.



Edge Online Recycle System



Hydraulic Net Changer;Static Side Locker;

Servo Drive Flying Blade Cutting winder


Parameters Table


Model

JDCPE90/60-1000

JDCPE110/60-1500

JDCPE130/80-2000

Screw Dia

Φ90mm+Φ60mm

Φ110mm+Φ60mm

Φ130mm+Φ80mm

L/D

33:1

33:1

33:1

Product Width

500-1000mm(500×2 rolls)

500-1500mm(500×3 rolls)

500-2000mm(500×4 rolls)

Film Thickness

0.01-0.03mm

0.015-0.04mm

0.015-0.04mm

Design Line Speed

200m/min

200m/min

200m/min

Production Capacity

170kg/h

240kg/h

300kg/h

Main Motor

55kw+22kw

90kw+30kw

110kw+45kw

Total Power

180kw

230kw

270kw

Weight

9000kg

11000kg

13000kg

OveralDemension

12000mm×5000mm×4000mm

13000mm×6000mm×4000mm

14000mm×6000mm×4000mm

Power Supply

380V/3P/4L/50Hz

380V/3P/4L/50Hz

380V/3P/4L/50Hz

Note:

Our machines can be customized according to different requests,such as: Width 1-2meter, layer 2-7 layers, so clients can always match their market request.

Due to the continuous improvement of the products, the appearance and technical parameter subject to change without notice.
