Double Layer Stretch Film Making Machine

Category:Double Layer Stretch Film Making Machine

Product features

This machine uses LDPE or LLDPE as material to produce casting stretch film. Two Screw Co-Extrusion, each screw allow different formulas to produce single side sticky stretch film, widely used in packaging of construction material, friction fittings, barrel film, barrel paper and hardware fittings. Screw and Barrel use 38CrMoAIA Alloy steel, after nitriding and special treatments. Machine cooling with water circulation, best cooling effect and best transparency of stretch film.

Inquiry

Product Details

Product description


Highlight


This machine uses LDPE or LLDPE as material to produce casting stretch film. Two Screw Co-Extrusion, each screw allow different formulas to produce single side sticky stretch film, widely used in packaging of construction material, friction fittings, barrel film, barrel paper and hardware fittings. Screw and Barrel use 38CrMoAIA Alloy steel, after nitriding and special treatments. Machine cooling with water circulation, best cooling effect and best transparency of stretch film.


Cutter Blade Winder

Vacuum System

Online Recycle (Optional)




Parameters Table


Model

JDCPE/60/45-500

JDCPE80/60-1000A

Screw Dia

Φ60mm/Φ45mm

Φ80mmΦ60mm

L/D

30:1

30:1

Product Width

250-500mm

500-1000mm

Film Thickness

0.01-0.03mm

0.01-0.03mm

Design Line Speed

80m/min

80m/min

Production Capacity

40kg/h

80kg/h

Main Motor

18.5kw/7.5kw

30kw/18.5kw

Heating Power

30kw

66kw

Total Power

65kw

120kw

Weight

4000kg

7000kg

OveralDemension

5600mm×2600mm×1900mm

6000mm×3000mm×1900mm

Power Supply

380/3/4/50（Volt/Ph/Line/Hz）

380/3/4/50（Volt/Ph/Line/Hz）



Note：

1.Our machines can be custermized according to different requests，such as: Width 1-2meter, layer 2-7 layers, so clients can always match their market request.

2.Due to the continuous improvement of the products, the appearance and technical parameter subject to change without notice.

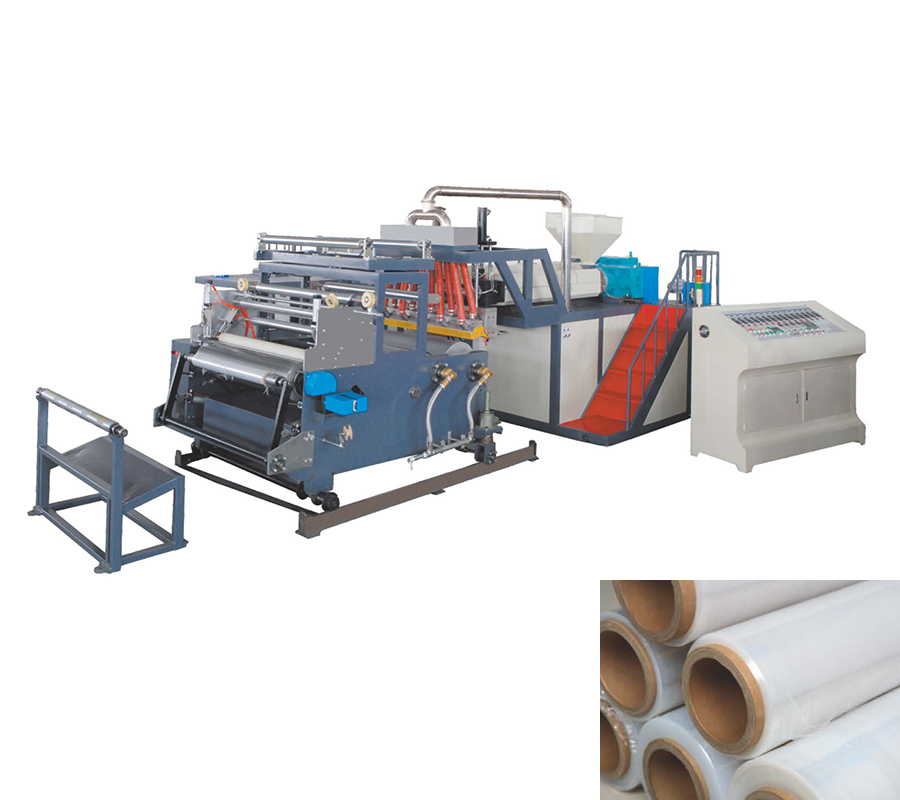

In this photo is the same 80/60A model but we modified to 1.5 Meter width to match clients’ needs.
