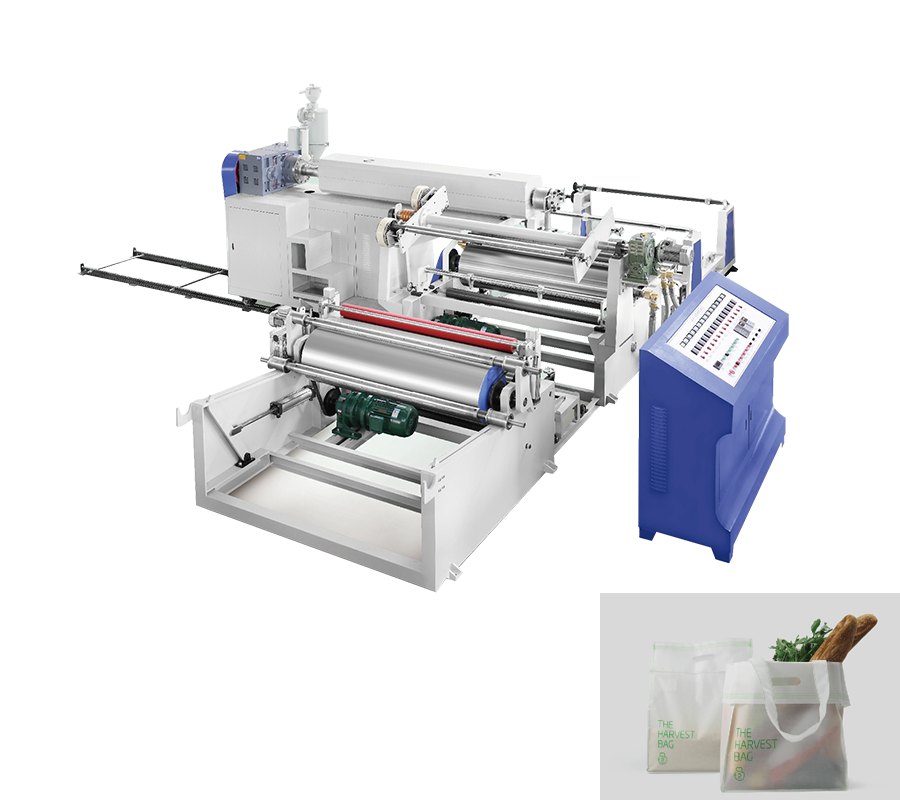

Non-Woven Fabric Extrusion Lamination

Category:Non-Woven Fabric Extrusion Laminating Machine

Product features

sing Lamination Grade material as LDPE and PP, this machine can laminate not only on Non-Woven and Woven Fabric, but also can do lamination work on Paper base product.

Inquiry

Product Details

Product description



Machine brief description


Using Lamination Grade material as LDPE and PP, this machine can laminate not only on Non-Woven and Woven Fabric, but also can-do lamination work on Paper base product.






Highlight

1.Machine can do stable coating at speed 80-120M/Min.

2.Automatic Tension and EPC, Reduce Labor cost.

3.Special Customized Options, allow clients to modify what is needed.


Product parameters


Model

JDLM1300/80

JDLM1600/90

Screw Diameter

φ80 mm

φ90 mm

L/D

33:1

33:1

Coating Width

600-1200mm

900-1500mm

Coating Thickness

0.01-0.10 mm

0.01-0.10 mm

Designed Line Speed

120 m/min

120 m/min

Max Extrusion

150kg/h

180kg/h

Main Motor

30 kw

37 kw

Total Power

77kw

98kw

Main Un-Winder

≤φ1200 mm

≤φ1200 mm

2nd Un-Winder

≤φ500 mm

≤φ500 mm

Winder

≤φ1200 mm

≤φ1200 mm

Weight

6000kg

7000kg

Overall Dimension

7400×7000×3200 mm

7400×7500×3200 mm

Power Supply

380V/3P/4L/50Hz

380V/3P/4L/50Hz
