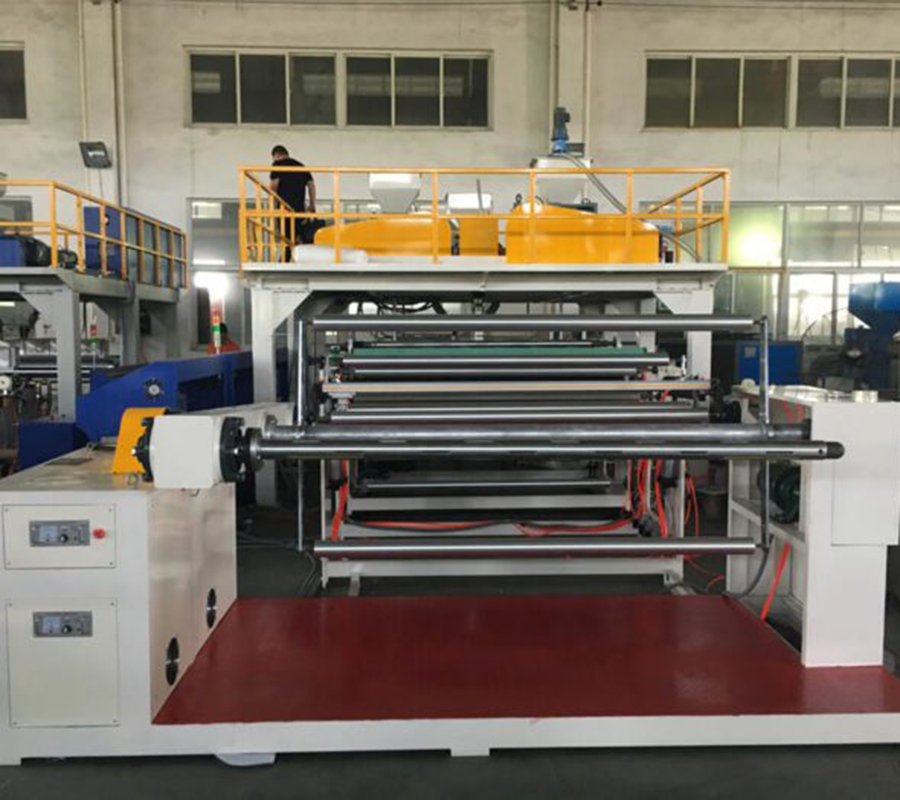

High Speed 3 Layer Air Bubble Film Machine (Three Extruder)

Basic Introduction

Compounding Bubble Film Making Machine is equiped with 7 Units including: Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder and Electrical System. Mainly used to produce 3-5 layer bubble film. Max can be custermized to produce 7 Layer Bubble Film. Have a wide usage application.



Product description

Basic Introduction

Compounding Bubble Film Making Machine is equiped with 7 Units including: Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder and Electrical System. Mainly used to produce 3-5 layer bubble film. Max can be custermized to produce 7 Layer Bubble Film. Have a wide usage application.

5layer Bubble Film

Comparing with traditional models,this model add one extruder, one compounding unit and two material shaft. Entire machine use PLC touch screen automatic control to make different kind of compounding products.

In real manufacturing, this machine can accheive full automatic function from material feeding to end product winding and changing. Easy Operation, stable working, low invest and high output.



Usable Material

Bubble Film machine use material LDPE MFI=2~7 as main material,can mix with LLDPE MFI=1.0~1.5 as support material, or use recycle LDPE MFI=2~4 as base material, to make bubble film products.

Tech Data

Model JDFPE-1600C JDFPE-2000C JDFPE-2500C
Main Extruder Φ80/70mm Φ90/80mm Φ90/80mm
Minor extruder Φ70mm Φ80mm Φ80mm
Film Width 1600mm 2000mm 2500mm
Capacity 200KG/Hour 250KG/Hour 250KG/Hour
Working Line Speed 35Meter/minute 35Meter/minute 35Meter/minute
Main Motor 30KW/22KW 45KW/30KW 45KW/30KW
Minor Motor 22KW 30KW 30KW
Total Power 225KW 284KW 327KW
Power Supply 380/3/4/50(Volt/Ph/Line/Hz) 380/3/4/50(Volt/Ph/Line/Hz) 380/3/4/50(Volt/Ph/Line/Hz)
Overal Demension 17000x5500x4100mm 18000x6200x4100mm 19000x6800x4100mm

Optional Parts

  1. Side Sucking Forming Roller, Less Sucking Variation and Better Chilling Ability.

2.Lamination Grade T-Die, to improve product quality, make sure T-Die Blocking without changing of T-Die Pressure, no matter how much you block, material comming out always in even form.

3.Unwinder with Automatic Tension and EPC

4.New Design of Winder which allows you to wind Big Jumbo Rolls max to 1500mm without making winder size too high. Save wastage and reduce labor work.

New Design Winder with Meg Tension Control and Converter Speed Control. Making Sure winding roll quality.
