Extrusion Coating Lamination Machine can accept LDPE、PP、EVA、EAA...etc lamination grade material，Use for film(BOPP、BOPET、CPP、CPE...etc)、Paper、Aluminum Foil、Non-woven...Etc as base material for compounding lamination。Widely used in medical packaging，food packaging，office packaging，industrial packaging and other packaging.

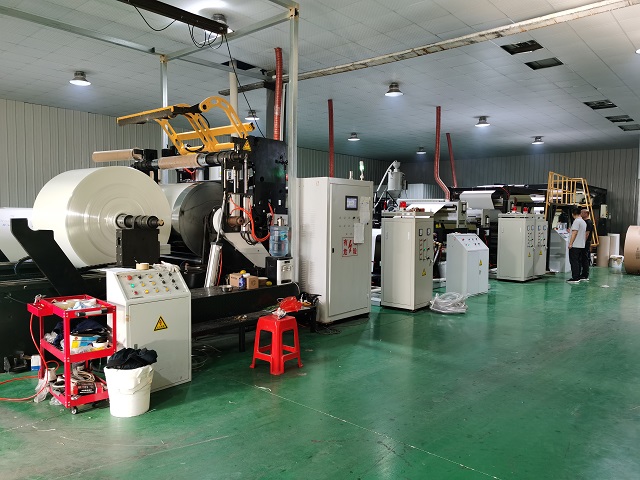

Extrusion Coating Lamination Machine
一、 Technological Process
Unwinding→Material Feeding→Corona Treatmen→Extrusion Lamination→Trimming→Winding.
T-die
Auto-splicer
二、 Main Data
|
Model |
JDLM1300/110X2 |
JDLM1700/110X2 |
|
Screw Dia. |
φ110 mm |
φ110 mm |
|
L/D |
35:1 |
35:1 |
|
Finished film width |
600-1200mm |
800-1600mm |
|
Lamination Thickness |
0.01-0.10 mm |
0.01-0.10 mm |
|
Usable Resin(Coating Grade) |
LDPE、LLDPE、PP、EVA、EAA |
LDPE、LLDPE、PP、EVA、EAA |
|
Design Line Speed |
270 m/min |
270 m/min |
|
Max. Extrusion Capacity |
370kg/h |
380kg/h |
|
Main Motor Power |
55 kw |
55 kw |
|
Total power |
165kw |
180kw |
|
Dia.of Main Unwinding |
≤φ1500 mm |
≤φ1300 mm |
|
Dia.of Winding |
≤φ1600 mm |
≤φ1300 mm |
|
Weight |
30t |
35t |
|
Overall Dimension(L×W×H) |
12000×12000×3500 mm |
12000×12000×3500 mm |
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
380/3/4/50(Volt/Ph/Line/Hz) |
Note: as the products are developing day by day, the technical data are subject to change without notice 。Different size model canbe custom-made。
