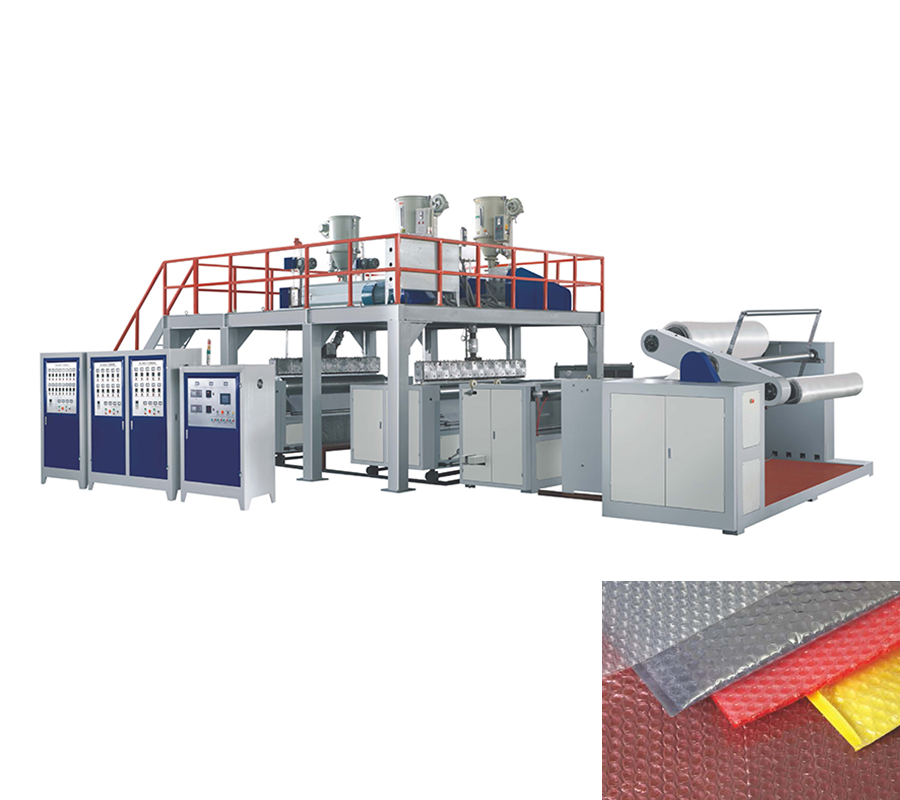

3 Layer Air Bubble Film Machine (Two Extruder)

Product description

Basic Introduction

Compounding Bubble Film Making Machine is equiped with 7 Units including: Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder and Electrical System. Mainly used to produce 3-5 layer bubble film. Max can be custermized to produce 7 Layer Bubble Film. Have a wide usage application.

5layer Bubble Film

Comparing with traditional models,this model add one extruder, one compounding unit and two material shaft. Entire machine use PLC touch screen automatic control to make different kind of compounding products.

In real manufacturing, this machine can accheive full automatic function from material feeding to end product winding and changing. Easy Operation, stable working, low invest and high output.


Usable Material

Bubble Film machine use material LDPE MFI=2~7 as main material,can mix with LLDPE MFI=1.0~1.5 as support material, or use recycle LDPE MFI=2~4 as base material, to make bubble film products.

Tech Data

Model JDFPE-1600 JDFPE-2000 JDFPE-2500
Main Extruder Φ80 Φ90 Φ90
Minor extruder Φ60mm Φ70mm Φ70mm
Film Width 1600mm 2000mm 2500mm
Capacity 150KG/Hour 180KG/Hour 180KG/Hour
Working Line Speed 25Meter/minute 25Meter/minute 25Meter/minute
Main Motor 30KW 45KW 45KW
Minor Motor 15KW 22KW 22KW
Total Power 135KW 194KW 247KW
Power Supply 380/3/4/50(Volt/Ph/Line/Hz) 380/3/4/50(Volt/Ph/Line/Hz) 380/3/4/50(Volt/Ph/Line/Hz)
Overal Demension 17000x5500x4100mm 18000x6200x4100mm 19000x6800x4100mm

Optional Parts

  1. Side Sucking Forming Roller, Less Sucking Variation and Better Chilling Ability.

2.Lamination Grade T-Die, to improve product quality, make sure T-Die Blocking without changing of T-Die Pressure, no matter how much you block, material comming out always in even form.

3.Unwinder with Automatic Tension and EPC

4.New Design of Winder which allows you to wind Big Jumbo Rolls max to 1500mm without making winder size too high. Save wastage and reduce labor work.

New Design Winder with Meg Tension Control and Converter Speed Control. Making Sure winding roll quality.
